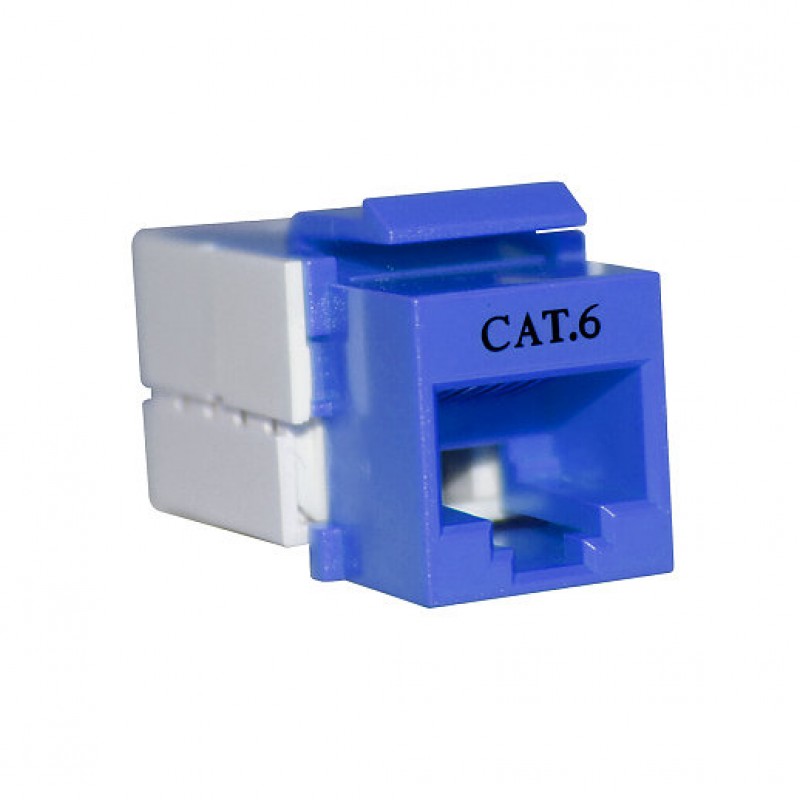

CAT6 Keystone Jacks

CAT6 Keystone Jacks

Keystone jacks provide an installer with a quick and easy way to network office building, cubicles, or even homes. Our jacks are UL listed, have a 110 type punch down and have phosphor bronze terminations. Customers love the solid, crisp punch down of the TCS keystone jack.

Features:

• Terminate using 110 or Krone tools
• Supports T568 A&B wiring & easy installation
• Interoperable and backward compatible to category 5 or 3
• Dual IDC connector can accept 23-26 AWG solid cables
• Bandwidth: CAT6 250MHz

Specifications

• Meets TIA/EIA-568C.2, ISO/IEC 11801 2nd Edition and EN50173-1
• CAT6A: IEC 60603-7-5 performance
• Current Rating 1.5Amp Maximum
• Insulation Resistance 10MΩ Minimum
• Contact Resistance 2mΩ per contact
• Temperature Range (-10)ºC to 60ºC
• Humidity 10%~90%; non-condensing
• Material Flame Rating 10g (including plastic bag & manual)
• Admissible Conductor UL94 V-0
• 8pin contact in PCB Jack 23AWG-26AWG insulation wire
• 50μ inch gold plating over nickel plating in contact area (Operating Life： Min. 750 insertions)
• IDC Contacts: 100μ in. nickel plated over phosphor bronze (Operating Life： Min. 250 re-terminations)
• UL/cUL Listed
• RoHS compliant
