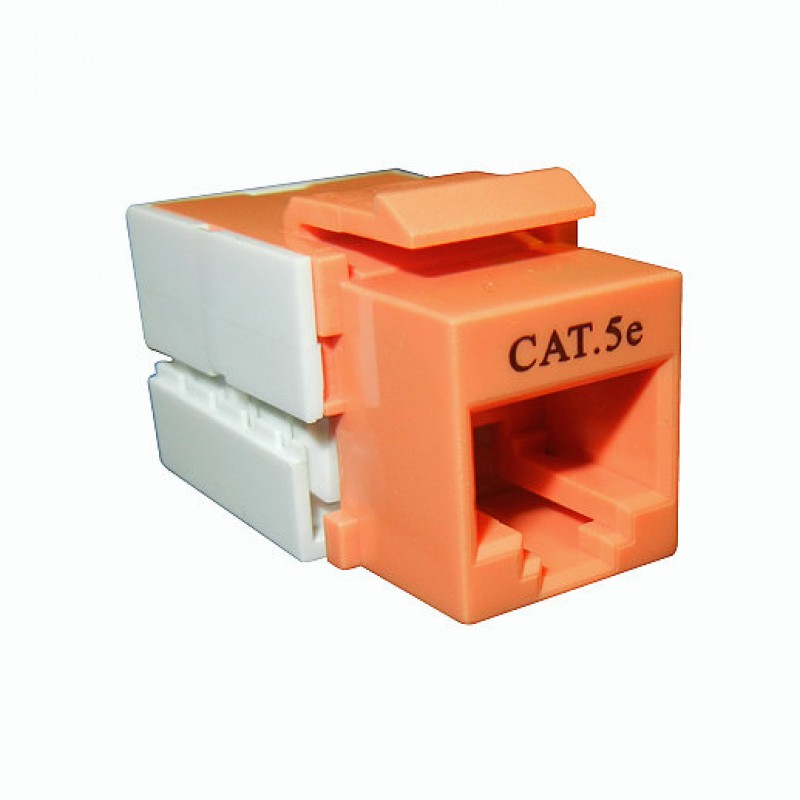

CAT5e Keystone Jacks

- +

CAT5e Keystone Jacks

Keystone jacks provide an installer with a quick and easy way to network office building, cubicles, or even homes. Our jacks are UL listed, have a 110 type punch down and have phosphor bronze terminations. Customers love the solid, crisp punch down of the TCS keystone jack.

  • Terminate using 110 or Krone tools
  • Supports T568 A&B wiring & easy installation
  • Interoperable and backward compatible to category 5 or 3
  • Dual IDC connector can accept 23-26 AWG solid cables
  • Bandwidth: CAT5e 125MHz, CAT6 250MHz, CAT6a 500MHz
  • Meets TIA/EIA-568C.2, ISO/IEC 11801 2nd Edition and EN50173-1
  • CAT6A: IEC 60603-7-5 performance
  • Current Rating 1.5Amp Maximum
  • Insulation Resistance 10MΩ Minimum
  • Contact Resistance 2mΩ per contact
  • Temperature Range (-10)ºC to 60ºC
  • Humidity 10%~90%; non-condensing
  • Material Flame Rating 10g (including plastic bag & manual)
  • Admissible Conductor UL94 V-0
  • 8pin contact in PCB Jack 23AWG-26AWG insulation wire
  • 50μ inch gold plating over nickel plating in contact area (Operating Life: Min. 750 insertions)
  • IDC Contacts: 100μ in. nickel plated over phosphor bronze (Operating Life: Min. 250 re-terminations)
  • UL/cUL Listed
  • RoHS compliant
