Fiber Solutions

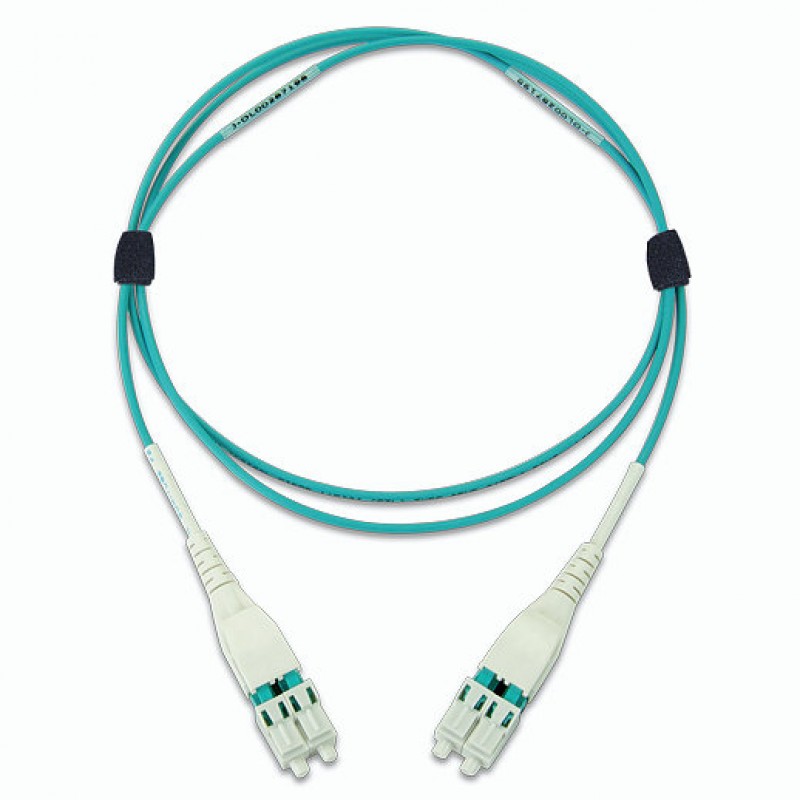

Universal LC™ Universal LC™.. Product #: Universal LC™

Universal LC™

- +

The Universal LC™ makes you future-proof. Now there’s no need to make additional investments due to increased demand for Mini LC.

The Universal LC™ features:
  • Adjustable Pitch incorporating the standard LC (6.25 pitch) as well as the mini LC (5.25 pitch) which is in growing demand. The Universal LC™ measures 11.4 mm, making side-by-side mini SPF+transceivers possible
  • Reversible Polarity
  • A Rapid Release Latch™, designed to allow technicians to use a simple “push/pull” method for removing the connector from a crowded panel. Adds, moves and changes are accomplished quickly and efficiently with minimal down time.
  • High Density 2 mm Jacket. Typical fiber optical cables are jacketed separately with a width of 6 mm. The Universal LC™ is creatively designed with both simplex fibers into one jacket while still terminating into a duplex LC or SC connector. The High Density jacket measures 2mm in width, a space savings of over 66%!
  • Bend Insensitive Fiber (BIF) to prevent fiber breakdown and substantial power loss.

Click to view or download (PDF Documents)
