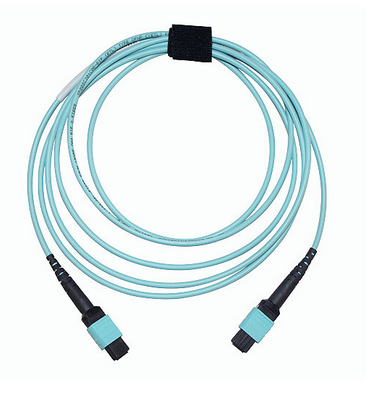

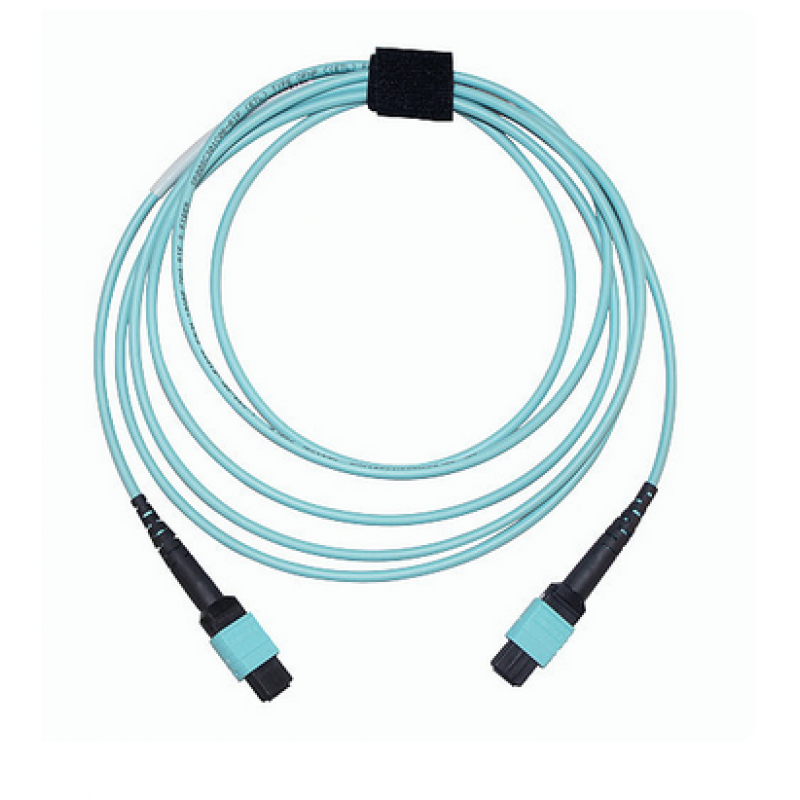

ICA SR Cable

ICA SR Cable

Supports fiber connectivity between Integrated Coupling Adapter (ICA SR) ports on modern mainframes. This short range cable supports links up to 150M using bend-insensitive OM4 multimode cable. The ICA SR cable is a 24-fiber with MTP Elite connectors for ultra low loss and high performance. Available in custom lengths as well as standard lengths equivalent to p/n 00JA686 (5m), 00LU282 (10m), 00JA688 (15m) and 00LU669 (20m).

Performance Specifications

MTP® Elite Connectors
Insertion Loss <0.35dB
Fiber Type: Corning Clearcurve 50/125 Om4
Plenum-rated 3mm Microcore
Meets All Industry Standards
RoHs Compliant
