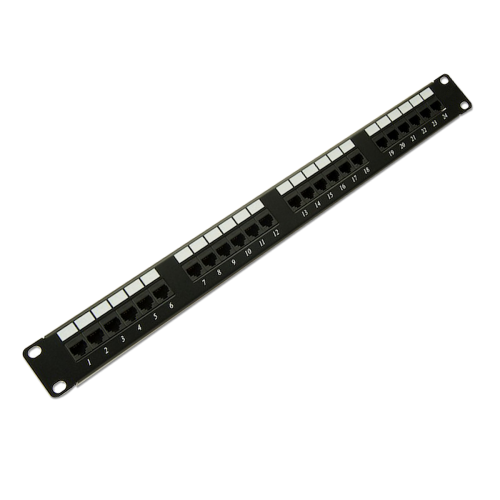

Cat.5e 24 Port 19 Inch Rack Mount Panel
Features:- UL approved
- 19 inch 1U rackmount
- Meets TIA/EIA-568B.2/568B.2-1 Cat.5 ISO/IEC 11801 and EN 50173-1 specification
- Support T568A & B wiring
- Wire diameter : 22 ~ 26AWG
- Insulation diameter range : 0.70 to 1.40mm
- Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
- IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
- Safty : UL1863
- Flamability : UL 94 VO
- Operating temperature : -40 to +70 dgree Celsius
- Weight : 1.55LBS
- Mounting Hinge: 102215
- 25 years warranty
Click to view or download (PDF Documents)
